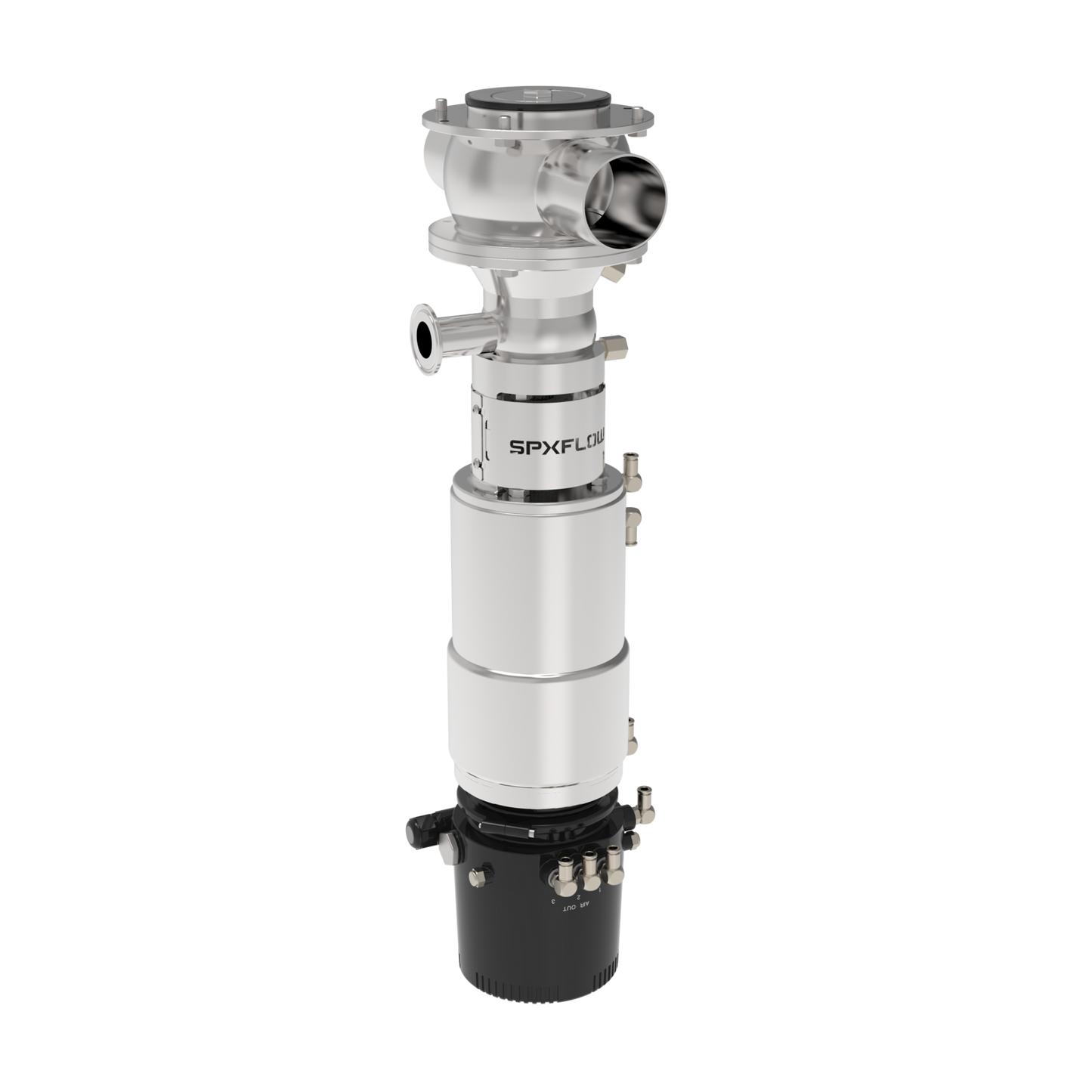

DT4 Tank Outlet Mix Proof Valve

The DT4 tank outlet mix proof valve is used for the reliable separation between the tank and servicing pipeline. The DT4 tank outlet is an extension to the D4 Series mix proof family which helps fulfil today’s customer demands for production flexibility, increased productivity, rapid return on investment (ROI) and improved product quality in the food and drink, dairy, personal care and brewing process industries.

High value, Low life cycle costs:

• “All-In” standard features such as seat lift actuator and cross-port housing provide exceptional value
• Reduced inventory costs with same seal kit used on multiple size ranges: DN40-DN65 (1.5”-3.0”) and DN80-DN100 (4.0”)
• Low air consumption and air supply requirements
• Leak drain with clamp connection for CIP fluid collection
• Long housing ports ease manifold building
• Integrated shaft seal flush reduces need for external piping

Reliable Performance:

• Design based on the proven D4SL model
• Tank side holding pressure greater than 5 bar (73 PSI)
• Long stroke for gentle product handling (ex: particulates) and low flow resistance
• Balanced design helps to prevent hydraulic blocking and enables flexible flow direction without slamming
• Heavy-duty bolted flange connection between tank/housing/insert provides secure, controlled assembly/disassembly of valve insert
• No compressed air needed for removal and servicing
• Range of control units and bus communication for automated operation

Cleanability:

• Designed to the latest hygienic standards
• Cavity spray cleaning as standard
• Radial seal design provides minimal switching leakage
• Extensive cleaning of product contact seals

Applications:

Food and Drinks

• Soups & Sauces, Flavourings & Ingredients, Dressings, Vinegars, Soft/Fruit & Beverage/Drinks, Brewery, Wort, Wine, Distillery, Pet Food, Fats & Oils, Animal Oils, Liquid, Sugar, Cereals

Personal Care and Pharmaceuticals

• Fluid, Medicines, Extracts, Face Creams & Lotions, Perfumes, Soaps, High Purity Water, Nutritional Supplements, Hair Styling, Gels & Liquids, Dyes & Alcohols

Chemical

• Solvents, Paints, Adhesives, Coatings, Oils & Lubricants, Detergents, Emulsions, Fuels

Unparalleled Support and Customisation:

• Extensive Inventory: Superior Pump Technologies maintains a substantial local stock. Contact us to confirm availability.
• Expert Service: Our skilled technicians can perform pump overhauls and repairs in our fully equipped and SPXFlow approved as certified repair centre workshop.
• Custom Solutions: We possess the expertise to design and build pump units tailored to your specific requirements. This includes compatibility with various drives such as electric, hydraulic, diesel, and more.

Streamlined Selection Process: Contact our knowledgeable team using our enquiry form below. We are happy to provide technical support and assist you in selecting the optimal pump to suit your application.
