DW Pumps

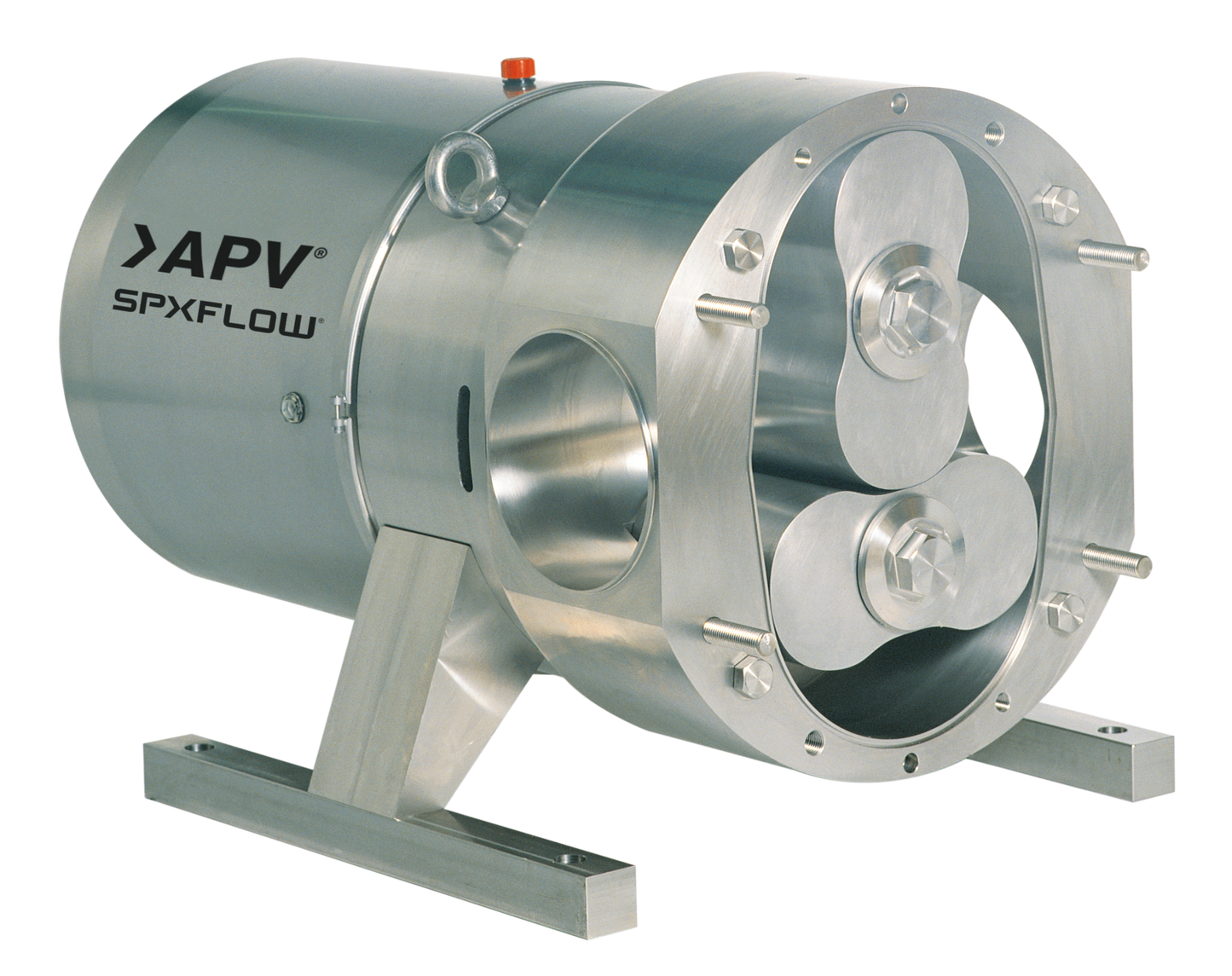

The DW series is a rotary lobe pump. The 26 DW models are hygienic, 3-A and EHEDG approved and cover all requirements from 3 litres /100 revs to 1016/100 revs. Maximum pressure up to 435 psi (30 bar.) All product contact parts are AISI 316L stainless steel and elastomers comply with FDA-requirements.

Benefits:

• High volumetric efficiency
  The DW model range is designed according to the principle: 'More pump for your money'. Internal clearances have been minimized making the pump so efficient that in medium viscosity applications a smaller pump size than usual will do the job. This reduces both initial investment and running costs.
• Ultra-hygienic, accommodates harsh CIP-cycles
  All DW models are CIP/SIP cleanable. The pumps are designed to withstand rapid temperature changes and can therefore accommodate very harsh CIP-cycles.
• Pulse-free performance
  When pumping highly viscous products, the DW circumferential piston pumps run completely pulse-free. This ensures a constant process flow, as required for instance in connection with filling machines, safeguards valves, and other equipment that is liable to damage through pressure surges.
• Low NPSH-requirement
  The highly improved suction capabilities of the DW pump considerably reduce the NPSH-requirement (Net Positive Suction Head required). In combination with the absence of pressure pulsations, this makes the DW pumps ideal for many applications, such as ultra-filtration.
• Gentle product handling
  The rotor designs ensure maximum product integrity and minimize risk of potential damage to sensitive products. The circumferential piston rotors, as well as the new twin lobe rotors are suitable both for high and low viscosities and will also handle cheese curds and whey, soft fruit and meat which until now required fitting of special rotors.
• Easy Maintenance
  The easy-to-access front loaded mechanical seals reduce maintenance time considerably. All shaft seal O-rings are identical and access to the shaft seal is achieved by simply removing the front cover and the rotors. Likewise, timing of rotors is an uncomplicated procedure.
• Low noise levels
  Unique rotor design practically eliminates hydraulic noise and the helical gears minimize gearbox noise.

Applications:

Food & Beverages

• Fruit Preserves, Soups and Sauces, Baby Food, Chocolate, Fruit Juice, Cider and Wine Yeast, Liquid Sugar and Glucose

Dairy

• Cream, Butter, Cheese Curd & Whey, Yoghurt, Ice-Cream

Pharmaceutical and Toiletries

• Antibiotics, Toothpaste, Cough Medicine, Shampoo

Chemicals

• Paint, Oil Additives, Resins, Photographic Film Coatings

Unparalleled Support and Customisation:

• Extensive Inventory: Superior Pump Technologies maintains a substantial local stock. Contact us to confirm availability.
• Expert Service: Our skilled technicians can perform pump overhauls and repairs in our fully equipped and SPXFlow approved as certified repair centre workshop.
• Custom Solutions: We possess the expertise to design and build pump units tailored to your specific requirements. This includes compatibility with various drives such as electric, hydraulic, diesel, and more.

Streamlined Selection Process: Contact our knowledgeable team using our enquiry form below. We are happy to provide technical support and assist you in selecting the optimal pump to suit your application.
