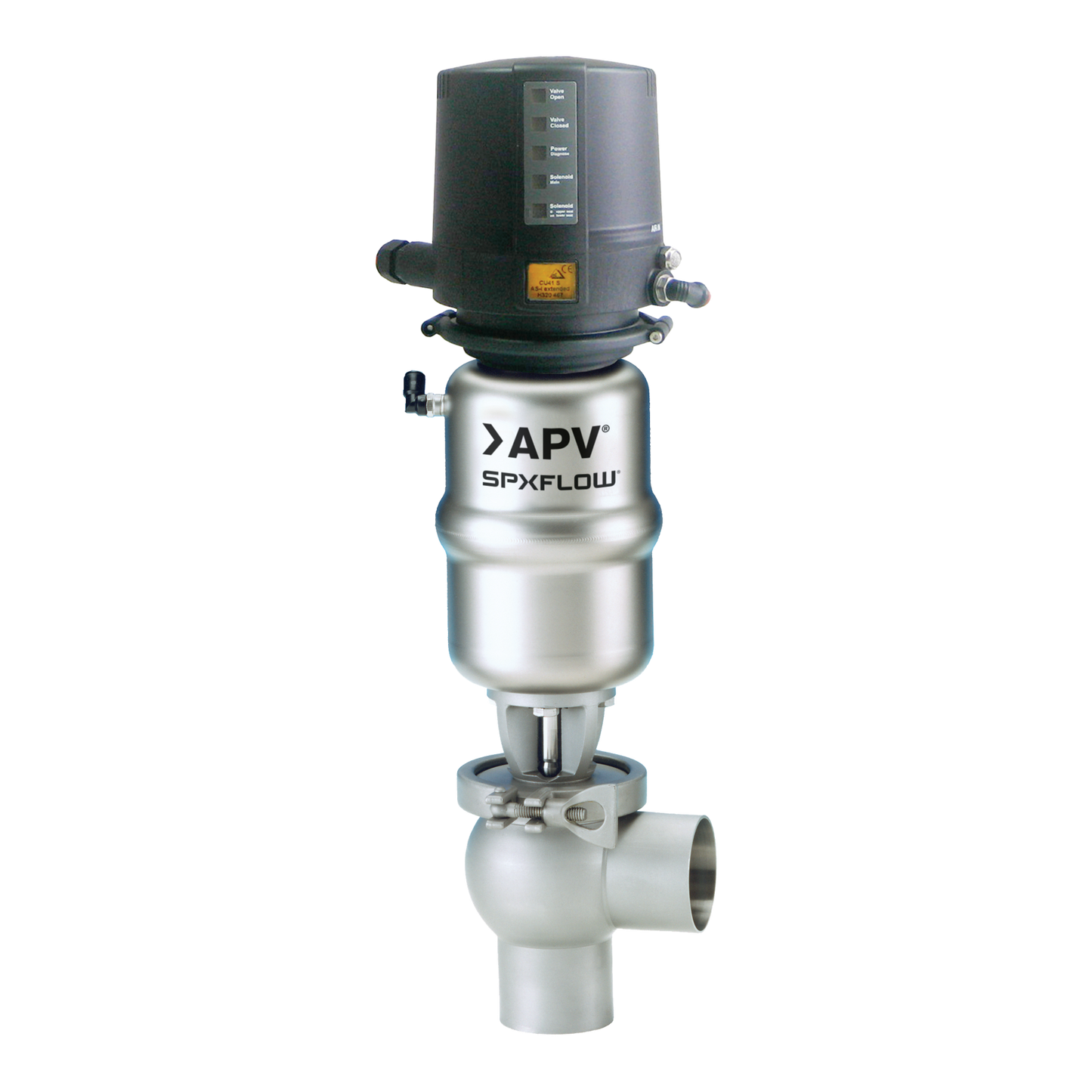

SW Series Single Seat Valves

SW Series Single Seat Valves

Brand: SPXFlow APV

The SW4 series hygienic single seat flow control valve is highly versatile and fulfills the demands of today’s processing industries. The hygienic valve design makes it ideal for applications in dairy, processed foods, beverage, brewery, and chemical industries.

Advantages of the SW4 Single Seat Valve:

  • Extra wall thickness of valve housing reduces stress in the seat area
  • Wear resistant elastomer/PTFE shaft seal and bearings increase seal lifetime
  • Installation and maintenance convenience
  • Profile seals with marking for easy identification
  • Metallic stop provides for defined compression of seat seal
  • Ball shaped housing prevents sump or dome, reducing CIP cleaning times
  • Clamp closure provides for quick and easy valve maintenance
  • Many different housing configurations
  • 3-A approved

All product-wetted parts are made of AISI 316 L / 1.4404 (DIN EN 100888) stainless steel. Seal materials are EPDM (standard), HNBR, FPM (options)

Valve variants:

  • With manual actuation (SW4 H)
  • Divert valve (SWS4)
  • Tank outlet version (SWT4)
  • High-pressure design (SWhp4)
  • With steam barrier (SW4 DPF)
  • Long stroke version (SW4 long stroke) for highly viscous products or larger particles
  • With modulating cone (SWR4)
  • Tangential inlet / outlet
  • ATEX compliant models
  • 3-A version

Nominal dimensions:

  • DN 25 – DN 150 / 1” – 4”, 6”

Applications:

  • Dairy, Beverage, Brewery, Clean in Place, Chemical

Unparalleled Support and Customisation:

  • Extensive Inventory: Superior Pump Technologies maintains a substantial local stock. Contact us to confirm availability.
  • Expert Service: Our skilled technicians can perform pump overhauls and repairs in our fully equipped and SPXFlow approved as certified repair centre workshop.
  • Custom Solutions: We possess the expertise to design and build pump units tailored to your specific requirements. This includes compatibility with various drives such as electric, hydraulic, diesel, and more.

Streamlined Selection Process: Contact our knowledgeable team using our enquiry form below. We are happy to provide technical support and assist you in selecting the optimal pump to suit your application.
