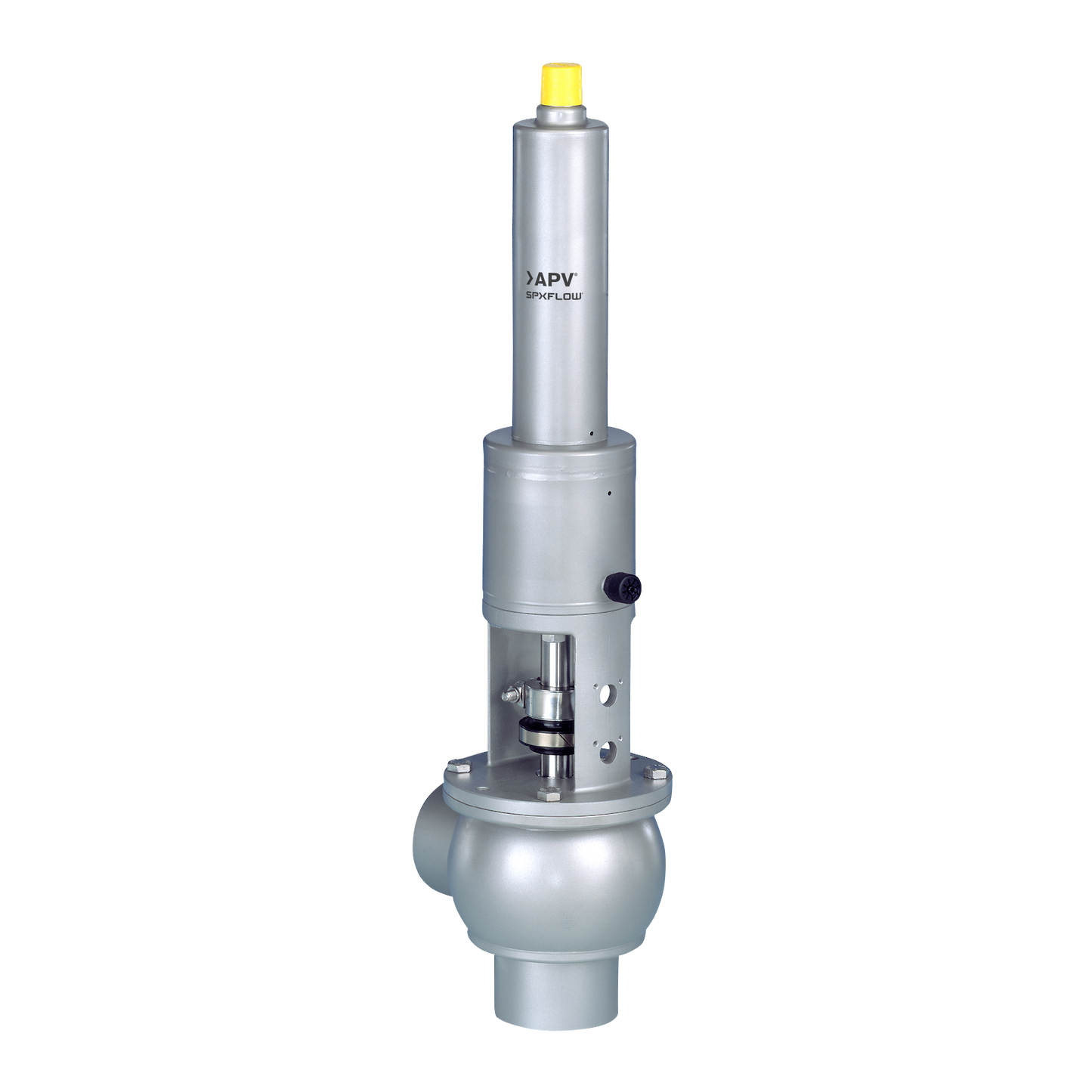

UF4/UFR4 Pressure Relief Valve

UF4/UFR4 Pressure Relief Valve

Brand: SPXFlow APV

The UF4/UFR4 Pressure Relief Valve offers enhanced performance, reliability, and ease of maintenance, making it an ideal choice for various industrial applications.

Optimum cleanability:

  • No dead spaces in the valve body​
  • No stroke limitation by seat lift actuator; the full opening cross section is available during cleaning​
  • 3-A approved designs available / Designed to EHEDG guidelines​
  • All product-contact parts are made of AISI 316L / DIN EN 1.4404 stainless steel.

Minimise Downtime​

  • Enhanced control for improved response to pressure relief events (through proximity switches or through control unit feedback)​
  • All valves come with a seal lifting function to open the valve during cleaning operation which helps minimize downtime​
  • Clamps allow for a service friendly design ​

Optimise your process

  • Protect your pump with an external over-pressure relief valve. If pump discharge pressure exceeds the set cracking-pressure, the valve will open to a relief path​
  • The modulating cone of the UFR4 valve provides for slower, smoother closing of the valve when low flow is expected and prevent pressure hammers​
  • Leverage the breadth of options to standardize your operations: can be supplied in nominal diameters from DN25 to DN100 and ISO 1" to 4"​

Feature:

  • Ball shaped valve body with smooth passages, i.e., no sump and dome, making CIP-cleaning more efficient and more reliable.
  • Seat lift actuator as a standard offering with feedback switches on top of the actuator.
  • UF4/UFR4 replacement insert fits into existing UF3/UFR3 housing making an easy upgrades to next generation with improved features.
  • Wide range of pressure settings can be achieved using four different actuators.
  • UF4 maintenance free actuator minimizes maintenance costs and downtime
  • The metal stop ensures defined compression of the seat seal, reducing material stress.
  • The UF4/UFR4 valves can be delivered with a comprehensive range of CU4, CU4plus control units.

Materials:

  • Product wetted parts: 316L, 1.4404 (DIN EN 10088)
  • Non-Product wetted parts: 304, 1.4301 (DIN EN 10088)
  • Seal: EPDM, HNBR, FPM (FDA Compliant)
  • Internal Surface Finish: ≤32 Ra (≤0.8µ)

Sizes:

  • 1” – 4” O.D. Tube
  • DN25 – DN 100

Pressure Ratings:

  • Operating Pressure: 0 – 10 BAR

Temperature Ratings:

  • EPDM, HNBR - 275ºF (135ºC), short time - 284ºF (140ºC)
  • FPM (not to be used for hot water) - 212ºF (100ºC)

Unparalleled Support and Customisation:

  • Extensive Inventory: Superior Pump Technologies maintains a substantial local stock. Contact us to confirm availability.
  • Expert Service: Our skilled technicians can perform pump overhauls and repairs in our fully equipped and SPXFlow approved as certified repair centre workshop.
  • Custom Solutions: We possess the expertise to design and build pump units tailored to your specific requirements. This includes compatibility with various drives such as electric, hydraulic, diesel, and more.

Streamlined Selection Process: Contact our knowledgeable team using our enquiry form below. We are happy to provide technical support and assist you in selecting the optimal pump to suit your application.
