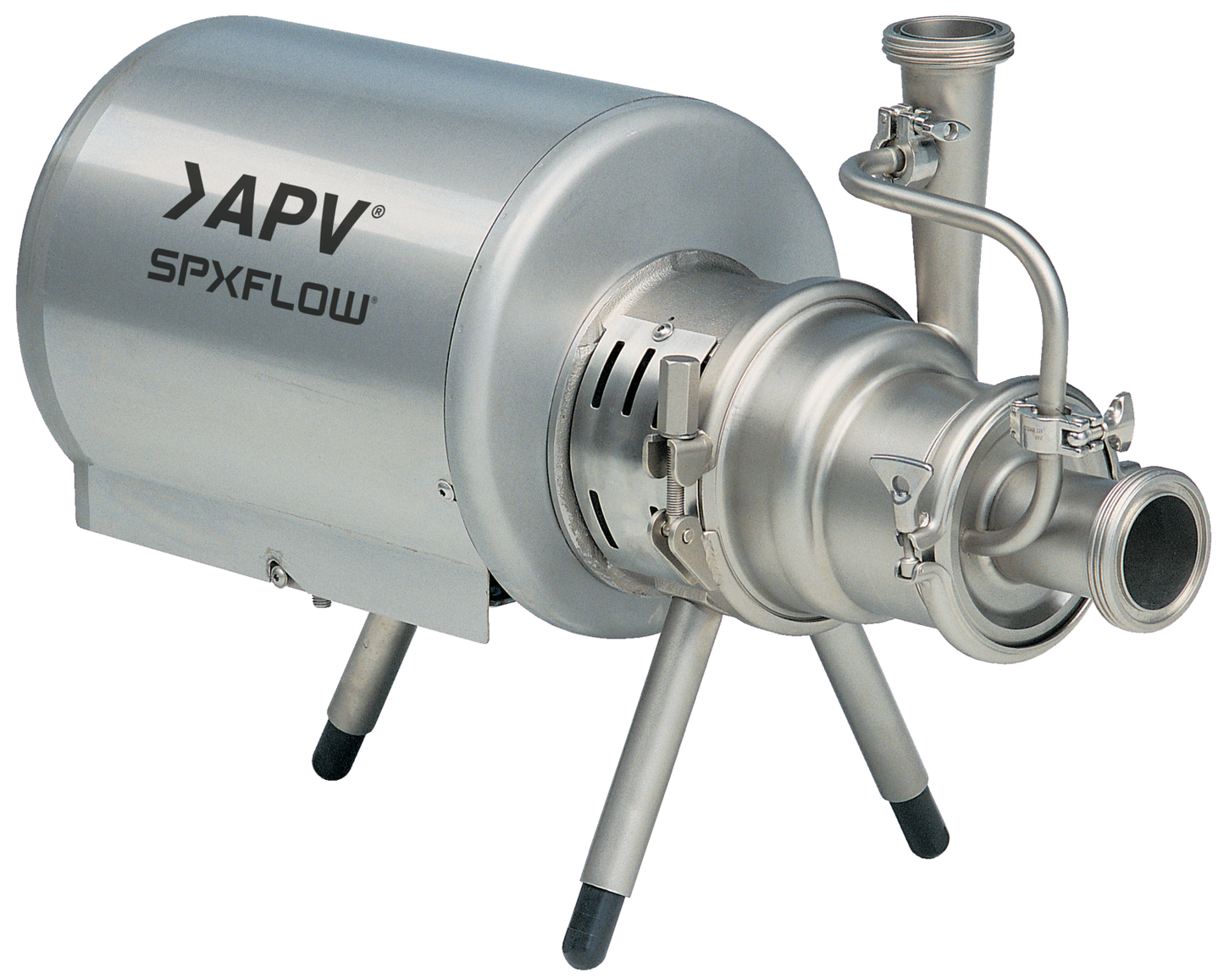

WS Plus Pumps

Reduce your noise level and benefit from the amazing development in self-priming.

The self-priming Ws+ is designed to handle CIP (Clean In Place) return and other fluids with entrained air and foam. The unique design reduces the energy consumption and noise of traditional liquid ring pumps by using a high efficiency impeller that can be trimmed to match a specific duty. The Ws+ employs a built in eccentric air screw to form the liquid ring required for its self-priming capability.

• 20-90% more efficient than other liquid rings due to improved fluid flow through pump.
• Performance optimized by matching impeller size to duty.
• Low noise level: Due to its hydraulic design the noise level of the Ws+ is significantly lower than traditional liquid ring pumps.
• 3-A (optional) and EHEDG approved.
• Interchangeable with W+ parts. Inventory is reduced by sharing common parts.
• Less prone to damage. Small objects can pass through pump with minimal damage.

The pump is approved by the EHEDG (European Hygienic Equipment & Design Group) as a hygienic pump and is also approved according to the American 3-A standard (optional). Consequently the pump can be used as a CIP as well as a first class hygienic product pump.

The Ws+ series consist of 3 pump sizes:

• Ws+ 20/15
• Ws+ 30/30
• Ws+ 44/50

At 50 Hz the Ws+ operates at a maximum pressure of 6.5 bar (94 psi) and a flow capacity of 90 m3/hour (396 GPM).

Applications:

Bakery and Confectionery

• Batters, Fats & Oils, Flavorings, Sweeteners, Yeast Slurry, Syrups

Dairy

• Whey, Cream, Milk, Sweetened Condensed RO/UF Systems

Pharmaceutical/Cosmetics

• Emulsions, Extracts, Slurries, Syrups, Dyes, Alcohols, Essential Oils

Chemical/Industrial

• Detergents, Dyes, Soap Liquors & Solutions, Ammonium Nitrate, Propyl Alcohol, Potassium Chloride, Sodium Acetate

Unparalleled Support and Customisation:

• Extensive Inventory: Superior Pump Technologies maintains a substantial local stock. Contact us to confirm availability.
• Expert Service: Our skilled technicians can perform pump overhauls and repairs in our fully equipped and SPXFlow approved as certified repair centre workshop.
• Custom Solutions: We possess the expertise to design and build pump units tailored to your specific requirements. This includes compatibility with various drives such as electric, hydraulic, diesel, and more.

Streamlined Selection Process: Contact our knowledgeable team using our enquiry form below. We are happy to provide technical support and assist you in selecting the optimal pump to suit your application.
