CombiPrime Pumps
CombiPrime Pumps
Brand: SPXFlow Johnson Pumps

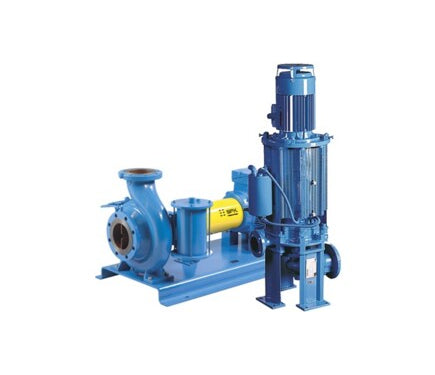

Self-priming centrifugal pump to EN 733 (DIN 24255), Vertical or Horizontal:
- Standardized and modular design
- Self-priming
- Built-in vacuum pump with external adjustment
- Large air displacement capacity, shortening suction times
- Flanges according to ISO 7005 PN 16
- Outstanding hydraulic performance
- High efficiency impeller
- Closed impeller with back vanes providing axial balancing of impeller loads
- Mechanical seals to EN 12756 (DIN 24960)
- 2-Angular contact thrust bearings and cylindrical roller bearing
- Robust shaft design
- Extended life time
- Atex Certified
- CE Certified
- Easy maintenance through the Back-Pull-Out principle
- Sea water resistant version available
- Available in horizontal and vertical execution
Technical Data
| Casing: | Cast iron, Bronze |
| Impeller: | Cast iron, Bronze, Alu-Bronze |
| Max. capacity: | Vertical; 800 m3/h Horizontal; 500 m3/h |
| Max. delivery head: | 100 m |
| Max. liquid temp: | 80°C |
| Max. pressure: | 1000 kPa (10 bar) |
| Max. speed: | 3 600 rpm |
| Self-priming: | Up to 8m |
Suitable for:
- Low viscosity, clean liquids when self-priming is required
Unparalleled Support and Customisation:
- Extensive Inventory: Superior Pump Technologies maintains a substantial local stock. Contact us to confirm availability.
- Expert Service: Our skilled technicians can perform pump overhauls and repairs in our fully equipped and SPXFlow approved as certified repair centre workshop.
- Custom Solutions: We possess the expertise to design and build pump units tailored to your specific requirements. This includes compatibility with various drives such as electric, hydraulic, diesel, and more.
Streamlined Selection Process: Contact our knowledgeable team using our enquiry form below. We are happy to provide technical support and assist you in selecting the optimal CombiPrime Pump to suit your application.
