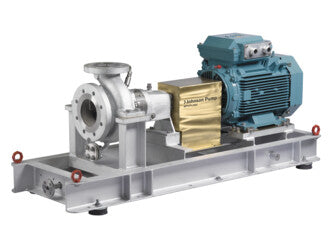

CombiPro Pumps

Heavy duty horizontal process pump to API 610, API 682:

• Centre-line mounted end-suction pump overhung single stage process pump
• Design requirements according to API 610
• Seal chamber to API 682
• Pump casing and cover metal-to-metal fit with fully confined, controlled compression spiral wound gasket
• Fully integrated design pump, motor, base plate, and accessories
• Outstanding hydraulic performance
• High efficiency impeller
• Closed impeller or half open impeller with wear plate and external adjustment
• Dynamically balanced impeller
• Flanges according to ISO 7005 PN 50 / 300 lbs ANSI B 16.5 or ISO 7005 PN 20 / 150 lbs ANSI B 16.5
• Atex certification
• Robust shaft design
• Extended life time
• 2 angular contact thrust bearings and cylindrical roller bearing
• Oil bath lubricated bearings
• Bearing housing cooling optional
• Easy maintenance through the Back-Pull-Out principle
• Renewable wear rings for casing and impeller
• Magnetic drive version according to API 685 optional
• Vertical version optional

Technical Data

Suitable for:

• Thin, clean and slightly contaminated liquids in chemical/petrochemical industry, refineries and general industrial applications

Unparalleled Support and Customisation:

• Extensive Inventory: Superior Pump Technologies maintains a substantial local stock. Contact us to confirm availability.
• Expert Service: Our skilled technicians can perform pump overhauls and repairs in our fully equipped and SPXFlow approved as certified repair centre workshop.
• Custom Solutions: We possess the expertise to design and build pump units tailored to your specific requirements. This includes compatibility with various drives such as electric, hydraulic, diesel, and more.

Streamlined Selection Process: Contact our knowledgeable team using our enquiry form below. We are happy to provide technical support and assist you in selecting the optimal CombiPro Pump to suit your application.
